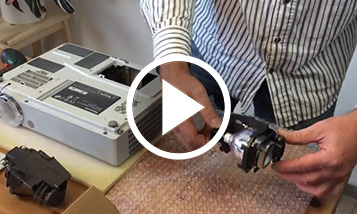

Panasonic PT-LB60 Projector lamp replacement video guide

Our video will show you how to replace the lamp with the module in the projector Panasonic PT-LB60. The procedure will be similar for other models from Panasonic. In the demonstration, the whole lamp module is replaced by a new one. If you have bought a bare bulb without the module, have a look at video on replacing bulbs in modules.

Subtitles transcription

  1. Turn off the projector by pressing the Power switch
  2. Let the projector cool down for at least 30 minutes
  3. Unplug the projector
  4. Remove the screws that hold the lamp’s cover
  5. Take off the lamp’s cover
  6. Remove the two screws that hold the lamp module
  7. Pull out the lamp module
  8. Unpack the new lamp
  9. Insert the new lamp and tighten it
  10. Return and secure the cover back in its position
  11. Clean or replace the dust filter
  12. Plug the projector in and switch it on
  13. Perform a reset of lamp hours: Menu > Option > Enter > Lamp Runtime > Press and hold the Enter button for approximately 3 seconds > The “LAMP RUNTIME” screen will be displayed > Power > Disconnect the power cord.
